# | Name: | Part Number: | |||||
1 | Oil Level Upgrade Kit External | JDK-B-OLKTE | |||||
2 | Teflon Oil Level Tube | JDK-B-TOLT | |||||
3 | Capacitive Proximity Sensor | JDG-CPS | |||||
4 | Proximity Sensor Cable | JDG-PSC |
#:

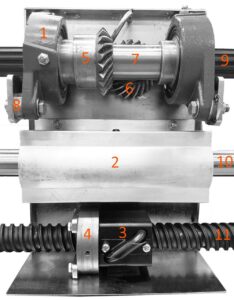

# | Name: | Part Number: | ||||||||
1 | Spline Bearing | JDK-SA-1.0SPL-2BFL | ||||||||
2 | Linear Bearing | JDK-SA-LB | ||||||||
3 | Ball Nut 1.5in | JDK-SA-1.5BN | ||||||||
4 | Ball Nut Flange 1.5in | JDK-SA-1.5BNF | ||||||||
5 | Bevel Gear Drive and Pins | JDK-SA-BGDRP | ||||||||
6 | Bevel Gear Driven | JDK-SA-BGDN | ||||||||
7 | Stirrer Gear Spacer | JDK-SA-GS | ||||||||
8 | Vibration Isolator | JDK-SA-VI | ||||||||
9 | Spline Shaft | JDK-SA-SPLS | ||||||||
10 | Stirrer 1-1/2 Support Shaft | JDK-SA-SS1.5S | ||||||||
11 | Screw Shaft | JDK-SA-SS |
#:
# | Name: | Part Number: | ||||||||
1 | Motor VWDM3545 | JDG-MTR1.0HP | ||||||||
2 | Gearbox for Stirrer (Dodge HF382CN56C) | JDK-SA-GBX20-1 | ||||||||
3 | 6Jx1 Coupling Flange | JDG-6JF1.0 | ||||||||
4 | 6Jx0.625 Coupling Flange | JDG-6JF0.625 | ||||||||
5 | 6JE Sleeve | JDG-6JES | ||||||||
6 | Spline Shaft | JDK-SA-SPLS | ||||||||
7 | Stirrer 1.5in Support Shaft | JDK-SA-SS1.5S | ||||||||
8 | Screw Shaft | JDK-SA-SS | ||||||||
9 | Inductive Proximity Sensor | JDG-IPS | ||||||||
10 | Proximity Sensor Cable | JDG-PSC | ||||||||
11 | Flow Control Valve | JDK-TC-SNDFCV | ||||||||
12 | Solenoid Coil (120 volt) or | JDK-B-SNDC120V or | ||||||||
Solenoid Coil (24 volt) | JDK-B-SNDC24 | |||||||||
13 | Solenoid Valve | JDK-B-SNDVLV | ||||||||
11, 12, 13 | Complete Gate Solenoid Assembly | JDK-TC-GVA |

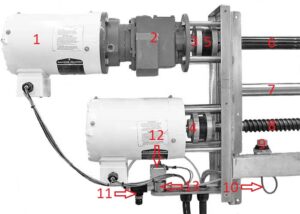

Stirrer Shaft Drive Diagram PDF
#:
#
Name:
Part Number:
1
Oil Level Upgrade Kit External
JDK-B-OLKTE
2
Teflon Oil Level Tube
JDK-B-TOLT
3
Capacitive Proximity Sensor
JDG-CPS
4
Proximity Sensor Cable
JDG-PSC
Oil Level Part Diagram PDF
#:
#
Name:
Part Number:
1
Spline Bearing
JDK-SA-1.0SPL-2BFL
2
Linear Bearing
JDK-SA-LB
3
Ball Nut 1.5in
JDK-SA-1.5BN
4
Ball Nut Flange 1.5in
JDK-SA-1.5BNF
5
Bevel Gear Drive and Pins
JDK-SA-BGDRP
6
Bevel Gear Driven
JDK-SA-BG
Read More
#:
#
Name:
Part Number:
1
Motor VWDM3545
JDG-MTR1.0HP
2
Gearbox for Stirrer (Dodge HF382CN56C)
JDK-SA-GBX20-1
3
6Jx1 Coupling Flange
JDG-6JF1.0
4
6Jx0.625 Coupling Flange
JDG-6JF0.625
5
6JE Sleeve
JDG-6JES
6
Spline Shaft
JDK-SA-
Read More
#:
