Touch Screen (Siemens)
Replacement touch screen for JD fryers The touch screen must be programmed at JD Manufacturing before installation. Please contact us to confirm the correct model and program versions.
Vibration Isolator
Vibration isolators used for damping vibration on spline bearings in JD stirring mechanisms.
Vibration Isolator Kit
Complete kit to replace vibration isolators on JD stirrers

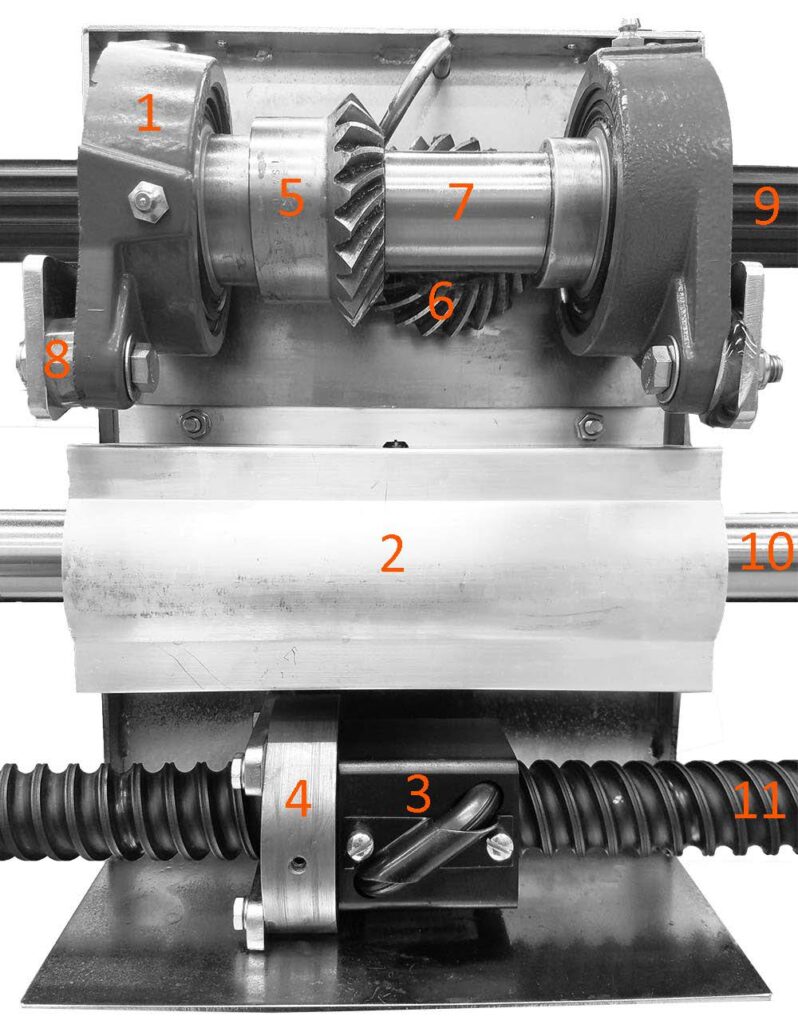

Stirrer Gearbox Diagram
# Name: Part Number: 1 Spline Bearing JDK-SA-1.0SPL-2BFL 2 Linear Bearing JDK-SA-LB 3 Ball Nut 1.5in JDK-SA-1.5BN 4 Ball Nut Flange 1.5in JDK-SA-1.5BNF 5 Bevel Gear Drive and Pins JDK-SA-BGDRP 6 Bevel Gear Driven JDK-SA-BGDN 7 Stirrer Gear Spacer JDK-SA-GS 8 Vibration Isolator JDK-SA-VI 9 Spline Shaft JDK-SA-SPLS 10 Stirrer 1-1/2 Support Shaft JDK-SA-SS1.5S 11 […]
6Jx0.625 Coupling Flange
Coupling flange interfaces 5/8″ motor quills to 6J coupling elements.
Stirrer Shaft Drive Diagram
# Name: Part Number: 1 Motor VWDM3545 JDG-MTR1.0HP 2 Gearbox for Stirrer (Dodge HF382CN56C) JDK-SA-GBX20-1 3 6Jx1 Coupling Flange JDG-6JF1.0 4 6Jx0.625 Coupling Flange JDG-6JF0.625 5 6JE Sleeve JDG-6JES 6 Spline Shaft JDK-SA-SPLS 7 Stirrer 1.5in Support Shaft JDK-SA-SS1.5S 8 Screw Shaft JDK-SA-SS 9 Inductive Proximity Sensor JDG-IPS 10 Proximity Sensor Cable JDG-PSC 11 Flow […]
Food Grade Anti-seize
Oil Level Part Diagram
# Name: Part Number: 1 Oil Level Upgrade Kit External JDK-B-OLKTE 2 Capacitive Proximity Sensor JDG-CPS 3 Teflon Oil Level Tube JDK-B-TOLT 4 Proximity Sensor Cable JDG-PSC Oil Level Part Diagram PDF
Burner Tube Change Kit
This kit includes 4 high temperature gaskets, 34 5/8 stainless steel studs, 34 5/8 stainless steel lock-nuts, and a set of instructions for changing the exchange tubes.
Bearing 0.5in ID Ball Bearing
0.5″ ID stainless steel ball bearing For use on 1.5″ takeout conveyor idler shafts. A total of 4 bearings are required to rebuild the shaft.
