Singulator/Orienting Feeder with Scale

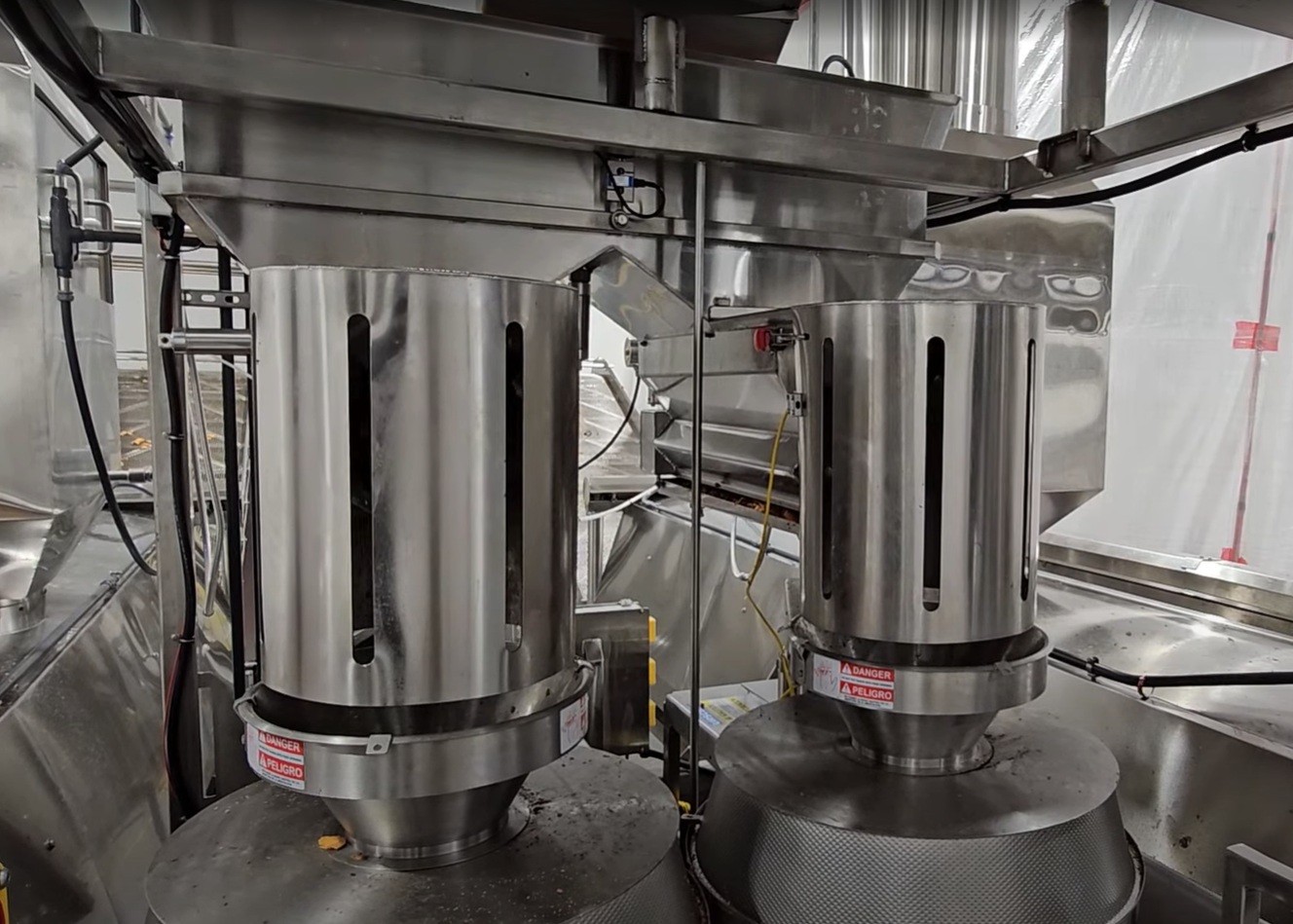

Precision Singulator & Scale System

Our Singulator/Scale system makes achieving precision batches effortless.

How it Works:

  • Accurate Loading: Product is initially loaded into the singulator scale positioned above.

  • Precision Feeding: When it’s time to slice-in, the scale delivers the exact, pre-determined weight directly into the slicer (such as an Urschel model).

  • Rapid Processing: The product moves seamlessly onto the high-speed slice conveyor.

The Benefits: This entire process is completed in mere seconds, ensuring optimal product freshness while significantly reducing product sticking. For maximum efficiency and space-saving, a single singulator system is typically shared between a pair of fryers, utilizing a slice conveyor that pivots smoothly between the two units.

High-Capacity Efficiency & Smart Anti-Bridging Design

  • Eliminate Wait Times: Featuring a robust 200 lb (90 kg) fill capacity, the singulator scale effectively removes the wait time associated with constant refilling.

  • Rapid Subtractive Weighing: When a fryer calls for product, the system immediately dispenses the exact requested weight directly into the slicer. Because the hopper does not need to be completely emptied first, both slice-in and reload times are significantly accelerated.

  • Flexible Batching: Need specialized runs? The singulator can be easily configured to fill strictly to individual batch sizes based on your current production needs.

  • Reliable Anti-Bridging Geometry: Our uniquely engineered design naturally reduces product bridging to ensure a smooth, continuous feed for a wide variety of produce—from long carrots to spherical chipping potatoes.

  • Automated Pneumatic Kickers: To further guarantee uninterrupted operation, the system actively monitors product flow. If a restriction is detected, integrated pneumatic kickers automatically activate to safely dislodge stubborn bridges, keeping your production line moving smoothly without any manual intervention.

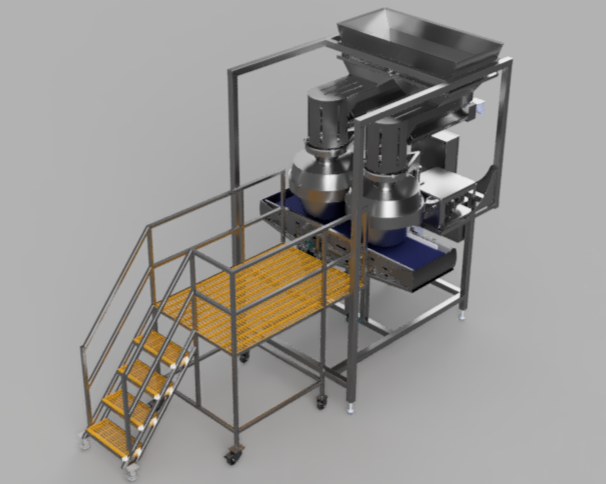

JD600CXI High-Volume Dual Auger Infeed

For operations requiring maximum throughput, we offer a larger, specialized infeed system tailored for our high-capacity JD600CXI fryers.

  • Massive Hopper Capacity: The system features an oversized hopper that holds approximately 500 lbs (227 kg) of product, drastically reducing the frequency of reloading during heavy production runs.

  • Dual Auger Delivery: This robust system utilizes dual augers to simultaneously feed two Urschel slicers.

  • Ultra-Fast Slice-In: This parallel feeding design allows you to rapidly slice in a massive 220 lb (100 kg) batch in just 45 seconds, ensuring perfectly uniform cooking across the entire batch.

  • Shared Efficiency: Like our standard systems, the JD600CXI infeed is expertly designed to service a pair of fryers utilizing a highly efficient, reversible slice conveyor.

  • Zero Contamination: Specially engineered debris gates guarantee that raw slices and stray particulate are prevented from feeding backward into the wrong fryer, completely eliminating the risk of batch contamination.

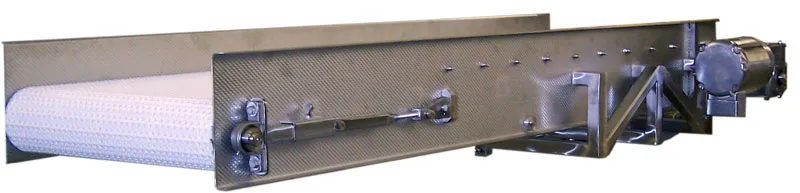

  • Accessible Maintenance: When it is time for sanitation or routine maintenance, the entire slice conveyor assembly smoothly swings a full 90° either direction out of the way for safe, unobstructed access.

Please, check our gallery about our Singulator/Orienting Feeder with Scale equipment
